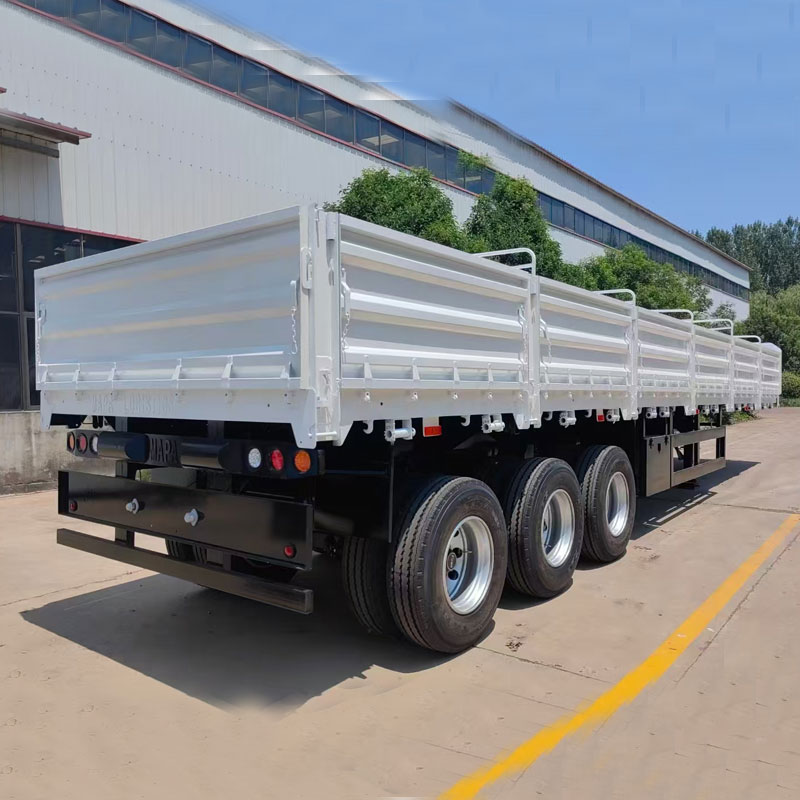

Sidewall Semi Trailer
Sidewall Semi Trailer has a flatbed structure design. We have 2/3/4 bridges with a load capacity of 30/40/60/80/100 tons for you to choose from. Customizable side wall height.
SKU:Sidewall Semi Trailer
Brand: JINMA
Price:11000 USD--15000USD
Dropside Trailer for sale
Sidewall Semi Trailer is popular with logistics companies because of its multifunctional use. It is used to load a variety of products and materials, such as sand, fruits and vegetables, steel coils and other bulk goods, and is very widely used in the transportation industry.
【Performance Features of Sidewall Semi Trailer】
● High-strength material beam, light weight and high strength;
● Waterproof side beam, safer cargo transportation;
● Optional pneumatic water spray system, reserved water tank installation space;
● Professional design, standard configuration, stable process, quality assurance;
● Multiple choices of box structure shapes to meet different needs.

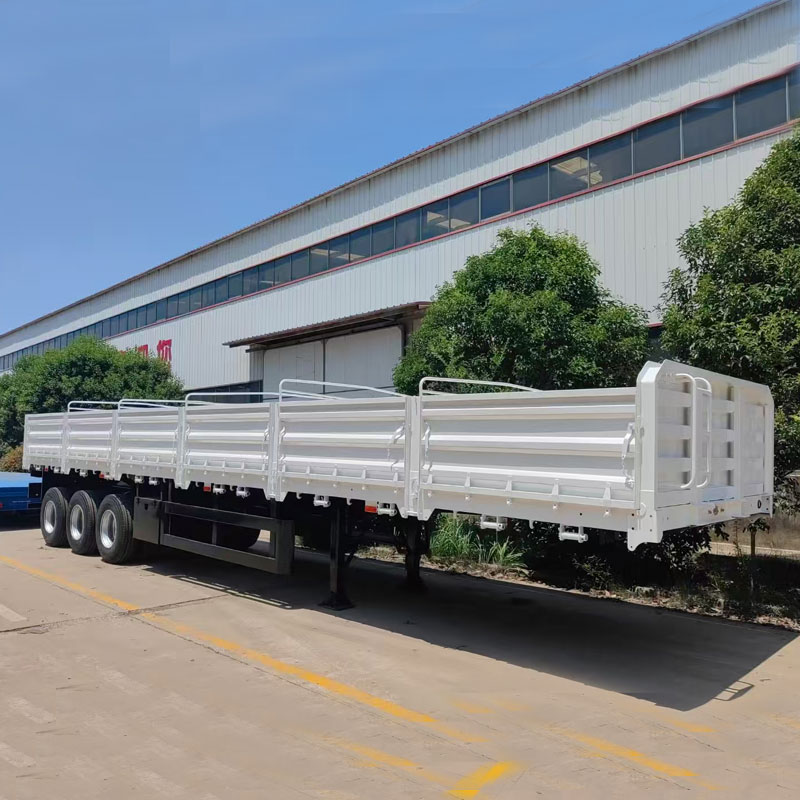

Sidewall Semi Trailer
Specification of Tri Axle Sidewall Semi Trailer | |
Name | |
| Tare Weight | About 7.6T |
| Dimension(mm) | 12500x2800x3260mm |
| Trailer Sides | 1250mm |
| Loading capacity(ton): | ≤60T,Load bearing capacity can be customized |
| Axles | 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand |
| Tire: | 12 units, 12.00R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical suspension, Optional air suspension |
| Spring Leaf | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | JOST brand D200T or Chinese brand 28tons(double-speed) |
| Main Beam | Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm |
| Material | Q345B steel |
| Side Beam | 16mm or 18mm steel channel (material: Q235 steel) |
| Bottom Platform | 3mm-thick checkered plate |
| Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank |
| Twist Locks | 4,8,12 sets (lifting or screw type) |
| Valve | WABCO valve (specially intended for overseas markets) |
| ABS | Optional |
| Light | LED light (specially intended for overseas markets) |
| Voltage | 24V |
| Others | Optional outer span columns, transverse corrugated box panels, and gooseneck structures are also available. |
Feel free to leave your inquiry!
We will provide a quotation and more details, drawings, pictures, and videos for you!
