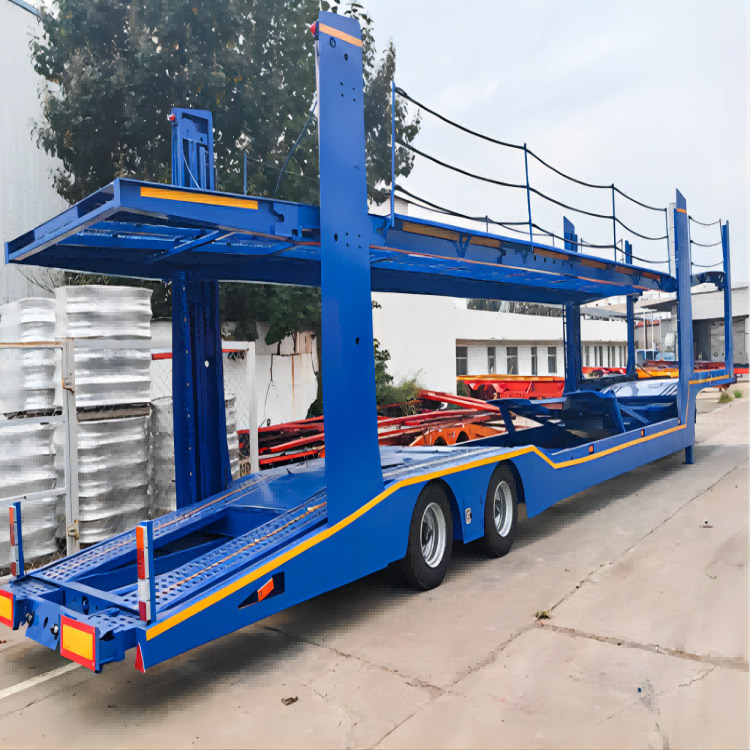

Custom Car Carrier Truck Trailer

Our trailer adopts hydraulic lifting system, which saves time and labor and has high working efficiency. A pair of ladders are provided at the rear end for loading and unloading of commercial vehicles (the ladder is light and durable, and made of high-strength square tube)

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description:

The trailer is designed to be loaded in two layers, and the height of the two layers can be adjusted (the space for loading commercial vehicles is more reasonable).Rear tail part - if the vehicle is not loaded with enough data, the rear tail can be pulled and lengthened by about 1 meter.

Custom Car Carrier Truck Trailer

Product parameters:

Trailer Model	car carry trailer
Overall Dimension(L x W x H)(mm)	20000×2600×4200mm
capacity	10 - 12 units vehicles
Axle Brand	13T×3pcs
Axle Number	Three
Axle load	13000kg X 3
Suspension system	Standard Mechanical suspension
The material of Main beam	The height of the beam is 500 mm, top 10mm,middle 6mm,bottom 12mm;T700 high strength steel
Tire Type and quantity	Chinese brand Tire 12R22.5
Tire Type and quantity	6 pcs.
rim	9.0×22.5
Traction Pin	2”,diameter 50.8 mm ,loading 16 ton
Tool Box	1 Standard
Landing Gear	standard 28 ton
Electrical system	1. Voltage: 24v
	2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.

FAQ：

Q: Does your company has your own factory?
A: Yes, we have a factory ourself, which is in this business nearly 40 years in China.Our factory is very famous where is
manufacturing various trailers in Shandong, China.
Q: Could you special design and produce for me?
A: Definitely! We have all kinds of professional engineers, could design and produce special product according to customer requested. Such as: special Size, special control, or OEM, etc.
Q: Do you looking for Agent?
A: Yes, we're looking for the agent all over the world, please contact us for further discussion.
Q: How about your price?
A: Although we are brand name products,but our prices are very favorable and competitive. Customer from all over the world to purchase our products, because our best price.
Q: What's your payment term?
A: We accpet both T/T and L/C T/T: 30% deposit by T/T, 70% balance should be paid before shipment. L/C: 100% irrevocable Credit of Letter.
